SITUPAI

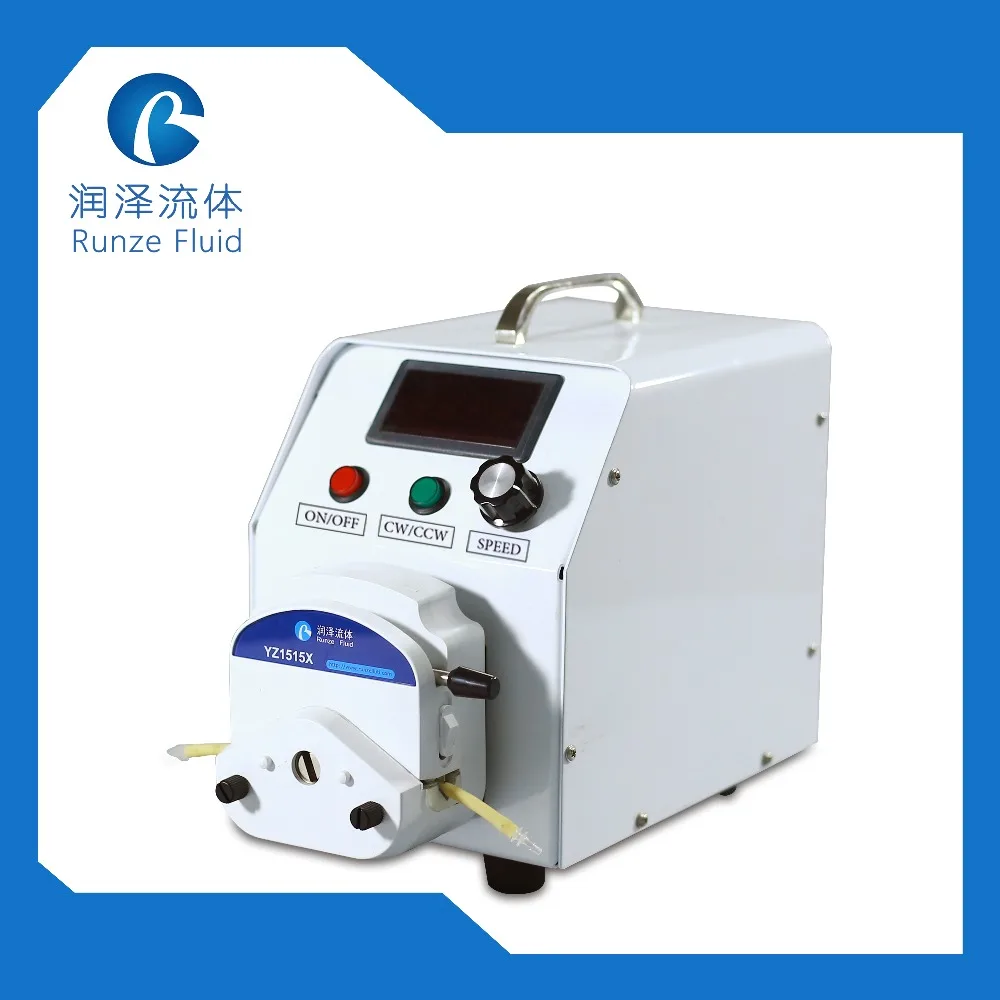

Constant Flow Corrosive Liquid Chemical Pump Runze Factory

Price

US $372.94

US $372.94
Check Price Now
Discount0%
Valid Time2019-04-08

Buy Product

Dear valued customer.

Kindly pls follow us to click the "Follow" button at the left of page.

You will get an additional discounted price and coupon to buy promoted items and receive our promotion news timely as a follower. Thank you.

 12





Technical Parameter



Model No.

SR400-YZ1515X

Roller numbers

3 rollers /6 rollers

Color

White/Black

Roller material

304 stainless steel

Pump head material

ABS

Housing material

Metal

Motor type

57 Stepping motor

Motor voltage

24V input

Power supply

AC100-240V

Rated current

2.3A

Rated power

18.8W

Speed

0-400rpm

Flow rate

0-1750ml/min

Tubing

Silicon/Rubber/Viton

External control

ON/OFF, SPEED, CW/CCW

Foot pedal (switch)

Optional

Working temp.

0-40

Working humidity

Less than 80%

Max DB

70db

Weight

5508g (3 roller) 5608g (6 roller)



Product Features



l  Exquisite structure, easy operation

l  Easy to replace tube and pump head

l  US plug, EU plug, CH plug for option

l  Imported high quality step motor to ensure high stability and long service life

l  Easy installation and easy control

l  LCD display current working speed





Tubing Steps





Tubing Installation Way

1.     20cm pump tube+2pcs straight connectors+ external tube (length as your application needs)

2.     1 whole piece pump tube (length as your application needs)



89



SR400-YZ1515X Flow Rate Table



Tubing

Speed (rpm)

Tube size      (ID*WT: mm)

3 roller pump      (ml/min)

6 roller pump     (ml/min)

Remark





Rubber tube









0-400rpm

1.6*1.6

0-101.3

0-79.6





Motor speed max 500rpm, but RUNZE driver limit motor speed to 400rpm maximum to ensure the pump stability and 1rpm minimum to keep flow rate as lowest as possible.

3.2*1.6

0-416

0-311.9

4.8*1.6

0-869.2

0-550.5

6.4*1.6

0-1302.8

0-723.8

8.0*1.6

0-1528.6

0-1198.9





Silicon tube

1.6*1.6

0-105

0-82.9

3.2*1.6

0-442.2

0-337.3

4.8*1.6

0-918.2

0-587

6.4*1.6

0-1344.8

0-762.8

8.0*1.6

0-1750

0-1284



Application Note:



1.     These data are generated under room temperature without extra pressure, test media is water. Your results may vary depending on variables such as the solvent used, the material of tubing, temperature, pressure, humidity, voltage etc.

2.     SR400-YZ1515X peristaltic pump is suitable for liquid viscosity like water or weak viscosity liquid.

3.     SR400-YZ1515X peristaltic pump is suitable for corrosive or non-corrosive liquid when equipping different kinds of tubing, liquid only go through tubing, so tubing material is the main factor for corrosion problem.

4.     We will standard equip 20cm rubber tube and 2 pieces straight connectors for each pump for your order, if you need more tubes and connectors for spare use, please order them in our shop.

5.     SR400-YZ1515X peristaltic pump was designed with basic functions of ON/OFF SPEED CW/CCW control, but it is not suitable for bottle filling which need to be preset filling volume, filling time and interval time.

6.     Dimension is within the 6 main showing pictures, please check it there.

7.     Please switch CW and CCW under low motor speed.

8.     We have CN, US and EU plug for option, please leave us message if you need US or EU plug, or we will ship CN as normal orders.



Important Shopping Guidance:



1.      Unit price is for 1pcs SR400-YZ1515X peristaltic pump

2.      Each pump will be well packed by thick foam and outer carton.

3.      Weight for 1pcs is set as 6.5 kg, because we need to ship by TNT, UPS or FedEx with 4-7working days to most countries, even you choose China post or Ali-express premium shipping, because SR400-YZ1515X was equipped step motor with magnetism, thus China post or Ali-express premium shipping are not available to open to it.

4.      Shipping cost will consider not only gross weight after packing but also consider the package volume weight.

5.      For customers from Russia, we usually ship by CDEK or PONY or SPSR line.

6.      For customers from Ukraine and Kazakhstan, some shipping way is available while some is not, we will call you and leave you message to inform you to cancel the order when not available.

7.      For customers from some countries such as Iran, Israel, South Africa etc. where shipping is not easy, we will try best to ship by the way you chosen, we will call you and leave you message to inform you to cancel the order when not available.

8.      For customers from Brazil, Chile and Argentina, please leave us a remark or message with your tax number on your order which is a must and necessary requirement from shipping agent.

9.      Please leave on the order with your 100% correct contact name, address, zip code, phone number and country code, or we can’t get contact with you when your order have problems.

10.    Ali-express will charge us 8% - 10% commission charge, so please try not bargain because we only receive part of your order amount, if you need to place a bigger order, please contact us for better price.

11.    If you need to order several products together, please add them to your shopping cart and forward them together but NOT pay it, we will help you combine shipping cost.

12.    Any questions on your order, please leave us message, we will handle it for you as soon as possible, greatly appreciated if you give us feedbacks before open an issue.

13.    Greatly appreciated if you leave us 5 star positive feedbacks once received your order, which will surely encourage us to do better in future cooperation.



Outstanding solutions for  Customers in the areas of dosing, injection and transfer of liquids in diversified applications in many industrial fields including Cleaning and Hygiene, Water Treatment, Industrial Processes
